How to Download a Mesh Using the API

With the Mesh Download API, you can download and create a mesh of any Site at runtime, allowing you to dynamically create mesh overlays in AR scenes. This feature makes it easier to test AR experiences by allowing you to check that your mesh lines up with the real world without having to leave the test environment. For example, you can download a stored mesh after localizing to see how far offset your localization is and figure out how it needs to change. Mesh downloading also allows developers to place content in scenes and explore environmental interactions without needing to stop testing and set up each mesh they want to try.

Its optional parameters provide ways to customize how it works, some of which are explored in this How-To.

Prerequisites

You will need:

• a Unity project with NSDK installed and configured
• an NSDK access token configured for the app; see Authorization
• a Site anchor payload copied from Scaniverse or obtained through the Sites API

For project and scene setup, see Set up the Niantic SDK for Unity.

Download a Site mesh

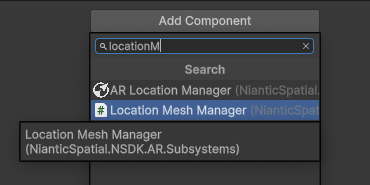

LocationMeshManager is a component included with NSDK. Add Location Mesh Manager to a GameObject, then reference that component from the script that downloads the mesh:

using NianticSpatial.NSDK.AR.Subsystems;

[SerializeField]
private LocationMeshManager locationMeshManager;

In the Inspector, drag the GameObject containing Location Mesh Manager into this field. Then call GetLocationMeshForPayloadAsync with the Site anchor payload. The method downloads the mesh asynchronously and creates a GameObject containing the generated mesh. The following code assumes that anchorPayload contains the payload for the selected Site.

View the Unity mesh download code

GameObject mesh = await locationMeshManager.GetLocationMeshForPayloadAsync(
    anchorPayload,
    getTexture: true
);

// A null result means that the request did not produce a mesh.
if (mesh == null)
{
    return;
}

The returned GameObject contains the downloaded geometry and, when requested, its texture. You can render it directly, inspect its child mesh objects, add collision geometry through the download options, or attach it to a tracked Site anchor.

Position the mesh at its Site

Downloading a mesh does not localize the device or position the mesh in the AR scene. To align it with the physical Site, track an anchor with the same payload and parent the downloaded mesh to that anchor:

if (!arVps2Manager.TryTrackAnchor(anchorPayload, out ARVps2Anchor siteAnchor))
{
    return;
}

// Passing false preserves the mesh transform relative to the Site anchor.
mesh.transform.SetParent(siteAnchor.transform, false);

// Update visibility as tracking changes in your app.
mesh.SetActive(siteAnchor.trackingState == TrackingState.Tracking);

Unity scene requirements and sample files

A project that downloads and renders a mesh needs authorization, a Location Mesh Manager, a compatible mesh material, and a source for the Site anchor payload. Placing the mesh at its physical Site also requires an AR Session, an XR Origin with an AR camera and AR VPS2 Manager, and camera and location permissions.

The NSDK Unity sample project shows how these pieces are connected:

• Assets/Samples/VPS2/Scenes/VPS2Localization.unity contains the scene components.
• Assets/Samples/VPS2/Scripts/VPS2LocalizeDemo.cs contains the anchor tracking and mesh download flow.
• Assets/Samples/VPS2/Scripts/SitesTargetListManager.cs obtains the Site anchor payload.

The sample's device UI does not expose mesh download as an action; use these files as implementation references.

Customize the mesh download

GetLocationMeshForPayloadAsync also accepts options for download size, collision geometry, textures, and cancellation:

var mesh = await _meshManager.GetLocationMeshForPayloadAsync(
    _anchorPayload,
    maxDownloadSizeKb: 10240,
    addCollider: true,
    getTexture: true,
    cancelOnDisable: true
);

• maxDownloadSizeKb limits the download size.
• addCollider adds collision geometry to the generated mesh object.
• getTexture requests texture data. When it is false, the API requests vertex-colored geometry instead.
• cancelOnDisable cancels the request if LocationMeshManager is disabled.

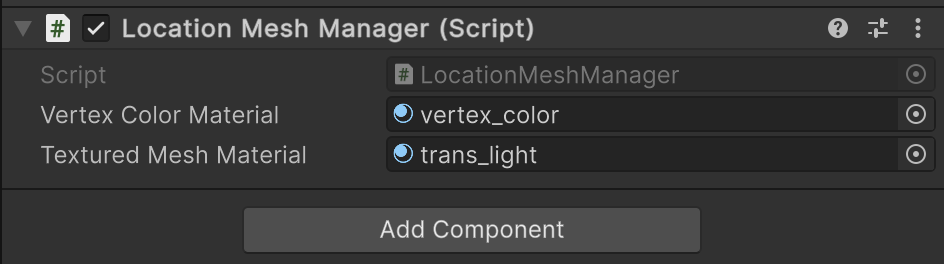

The mesh must use a material compatible with the project's render pipeline. Refer to the Location Mesh Manager in the sample scene for the setup used by the installed NSDK version. Textured meshes contain more download data; vertex-colored meshes are smaller and require a material that renders vertex colors.

Known Issues

• If no mesh is available for the supplied Site anchor payload, the API returns null or an empty result, depending on the platform.
• Some meshes can be quite large. If download size or runtime performance is a concern, consider setting a maximum download size.

More Information

See LocationMeshManager in the Unity API reference.
